3 solutions to the kiln mouth burst problem, one of which 90% of people don’t know

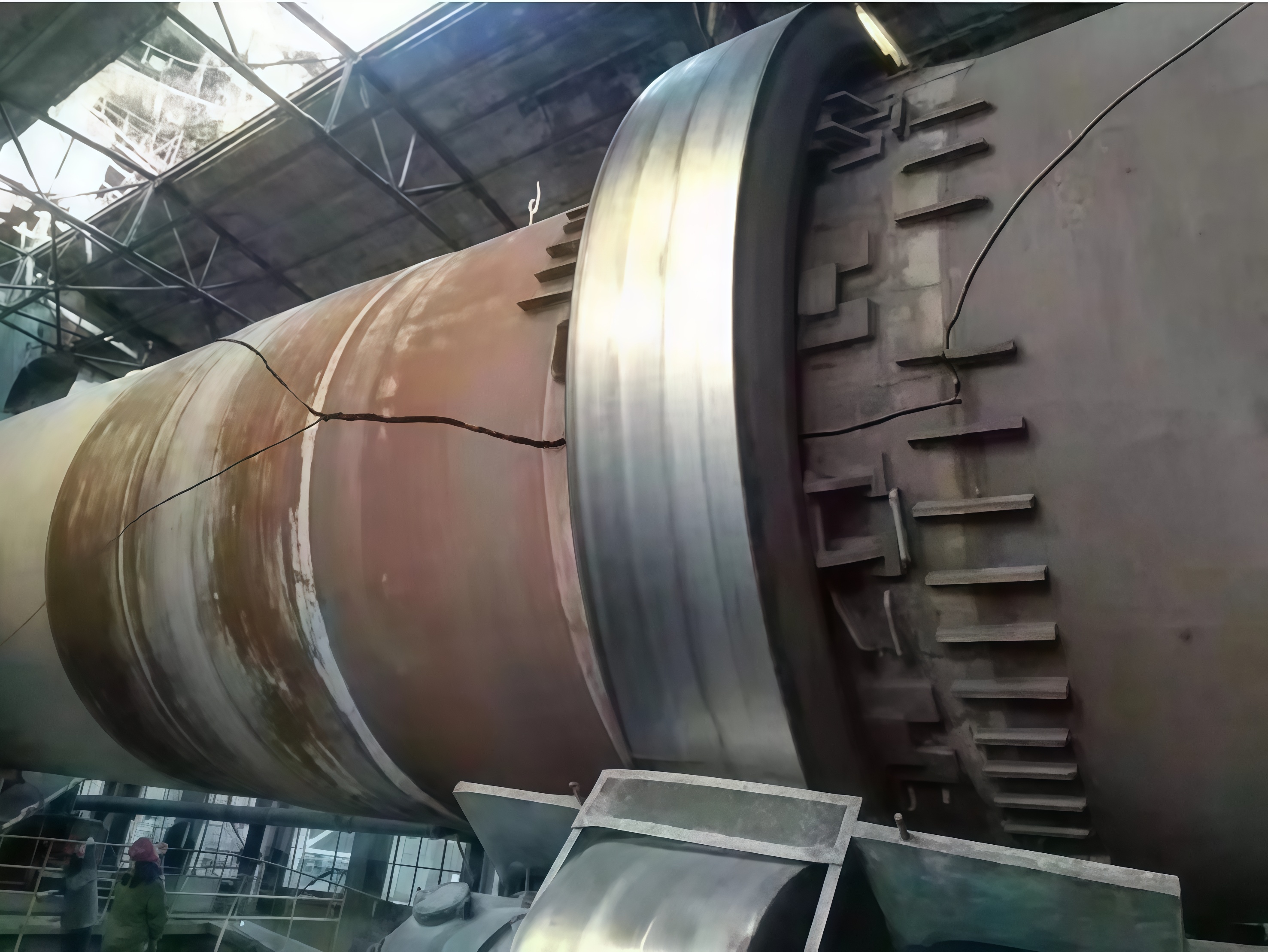

1. Burst at the kiln mouth, a stubborn disease that causes headaches for cement factory and lime kiln owners

'Gong Wang, our kiln mouth has cracked again, and it has only been used for less than 3 months!' This is the sentence we hear most often at customer sites. The problem of kiln mouth explosion is the most common and troublesome technical pain point in high-temperature industrial kilns. Once a kiln mouth burst occurs, it may cause thermal system disorder and decrease in output, or cause the kiln lining to peel off, the cylinder to deform, or even cause a kiln shutdown accident. According to our statistics, the direct repair cost of a serious kiln mouth burst problem can reach hundreds of thousands of yuan. Including the loss of production suspension, it can easily reach millions of yuan. More importantly, frequent bursts will shorten the service life of the kiln body, causing enterprises to fall into a vicious cycle of 'repair cracks, then repair cracks.' So, how does the kiln mouth explosion problem occur? How to cure it? Today we share 3 practical solutions from the perspective of materials and structure.

2. Three core causes of kiln mouth explosion problems

Combining years of on-site technical transformation and after-sales experience, we have summarized the three core causes of kiln mouth bursting problems. Most bursting failures are inseparable from these three points.

The first is the alternating hot and cold stress shock . The kiln mouth is exposed to the erosion of high-temperature materials and the intrusion of cold wind from the outside for a long time. The temperature difference between day and night, and the temperature difference between start and stop are huge. The lining body repeatedly expands and contracts with heat, and the stress continues to accumulate, and eventually fatigue bursts, cracks and pieces fall off.

Secondly, there is a mismatch in material selection . Many companies use ordinary clay bricks or conventional castables. Such materials have insufficient thermal shock and erosion resistance and cannot adapt to the high-intensity working conditions of the kiln mouth. They will break and burst in a short time.

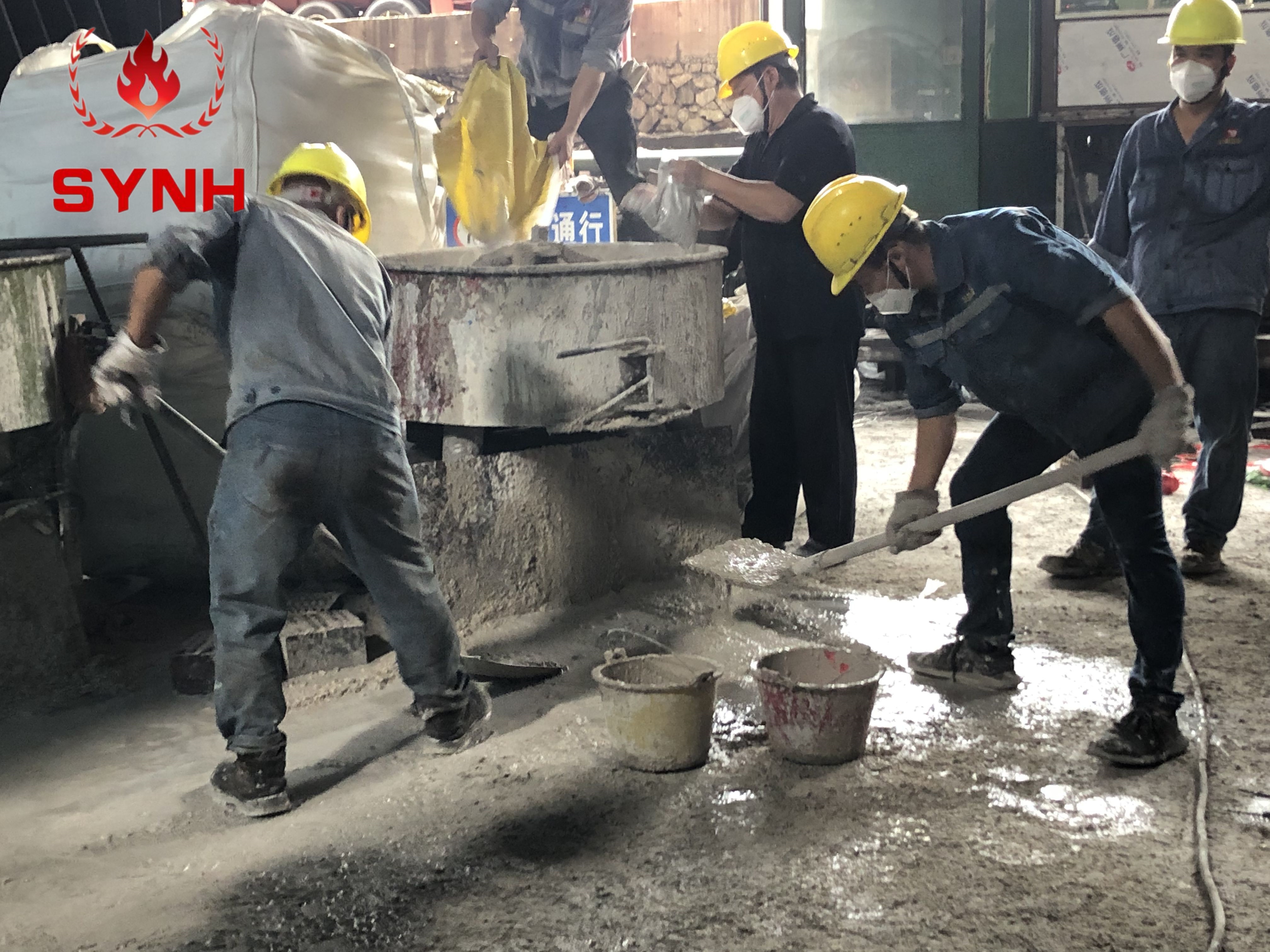

Then the construction and oven are not standardized , the kiln entrance anchorage layout is unreasonable, the castables are not vibrated properly, the curing time is insufficient, or the oven heats up too fast and the internal water vapor expands rapidly, which directly causes the surface and deep layers of the kiln entrance to burst and fall off.

3. Advantages, disadvantages and applicable scenarios of the three kiln mouth burst repair solutions

For different degrees of kiln mouth bursting problems, there are three main rectification plans in the industry. The repair effects, costs, and service life are obviously different. The first two are common and old solutions, and the third is a long-term radical cure process that few people know.

Option 1: Traditional overall removal and pouring repair . Completely remove all damaged linings at the kiln entrance, re-cast the molds and pour conventional wear-resistant castables. The advantages are low construction threshold, easy procurement of materials, and intuitive short-term repair effects. It is suitable for large-scale severe bursts and overall loosening of the lining. The disadvantage is that it treats the symptoms but not the root cause. The thermal shock resistance of ordinary castables is average and cannot withstand frequent hot and cold shocks. It usually bursts and recurs within 1-3 months. The overall replacement period is long and the downtime losses are large.

Option 2: Local repair, reinforcement and repair . For local cracking, falling pieces, and bursts at the kiln entrance, grind and clean the damaged base surface, and use high-strength repair materials to fill, level, and reinforce. The advantages are no need for large-scale demolition, fast construction speed, short downtime, low cost, and suitable for emergency resumption of production. The disadvantage is that the combination of new and old materials is limited, and there is a risk of delamination. It can only temporarily solve the problem of surface bursting, but cannot completely eliminate repeated cracking, and has a short service life.

Plan 3: Gradient composite anti-crack lining technology (long-term plan) . This is a radical solution that 90% of practitioners do not understand. It uses a 'thermal shock-resistant bottom layer + high-strength wear-resistant surface layer' gradient composite structure, with dense anchoring and reserved micro-stretching technology to release thermal stress. The advantage is that it resolves hot and cold impact stress from the source, greatly improves burst resistance and erosion resistance, has a service life that is more than three times that of traditional solutions, and basically eliminates the problem of repeated kiln mouth bursts. The disadvantage is that it requires high construction technology, material ratio, and anchoring installation accuracy, and the construction must be carried out by a professional technical team.

4. Successful experience in industry implementation

As a source manufacturer of refractory insulation materials, we have been focusing on special rectification of kiln mouth explosion problems all year round, and have accumulated a lot of mature experience. In view of the common pain point in the industry that kiln mouths burst repeatedly and break after repair, we abandoned the traditional inefficient model of repeated repairs and mainly promoted the gradient composite anti-crack lining technology. Before construction, an exclusive material ratio and anchoring arrangement plan were customized based on the kiln mouth diameter, working temperature, and material erosion intensity; during construction, the curing time and oven temperature rise curve were strictly controlled to avoid water vapor explosion and stress accumulation problems. At present, this process has been applied in hundreds of production lines such as cement and metallurgy. The modified kiln mouth lining can operate stably for more than one year without bursting or falling off, significantly reducing the frequency of furnace shutdowns for maintenance and effectively reducing enterprise operation and maintenance costs and energy consumption.

5. Summary

In general, the problem of kiln mouth bursting is not incurable. Most companies have recurring failures. The core reason is the selection of traditional repair solutions with poor adaptability, which only repair the surface and do not solve the root causes of stress. Choosing the right professional technology can completely get rid of the dilemma of frequent repairs and repeated downtime. If your production line is facing problems such as kiln mouth cracking, bursting, and falling pieces, and you want to get targeted rectification plans, please follow this account and reply to the keyword [Kiln Mouth Repair] via private message. You can receive a full set of special solutions to the kiln mouth burst problem for free to help the company"s kiln operate stably and long-term.
