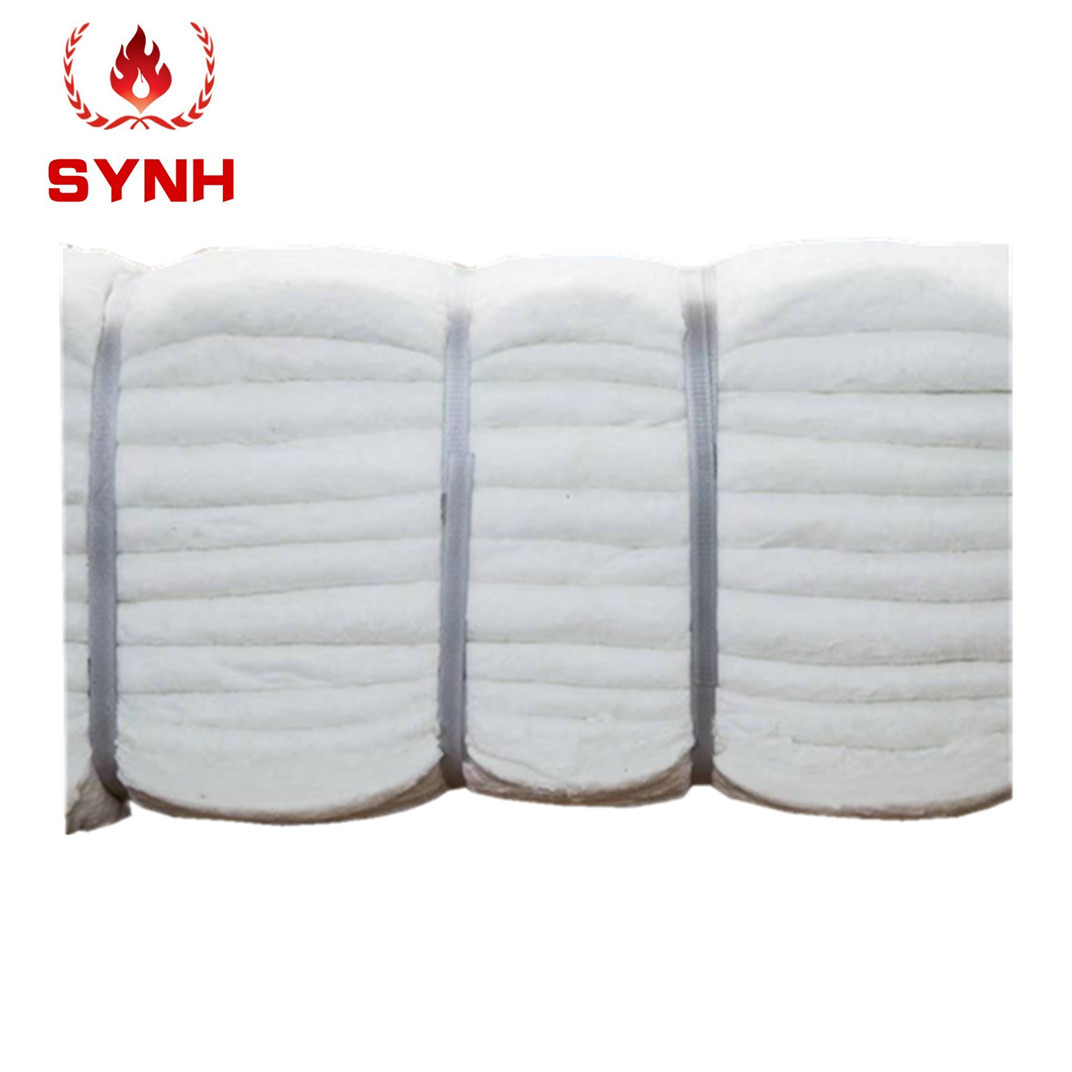

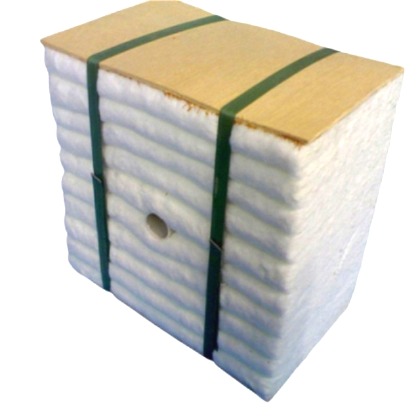

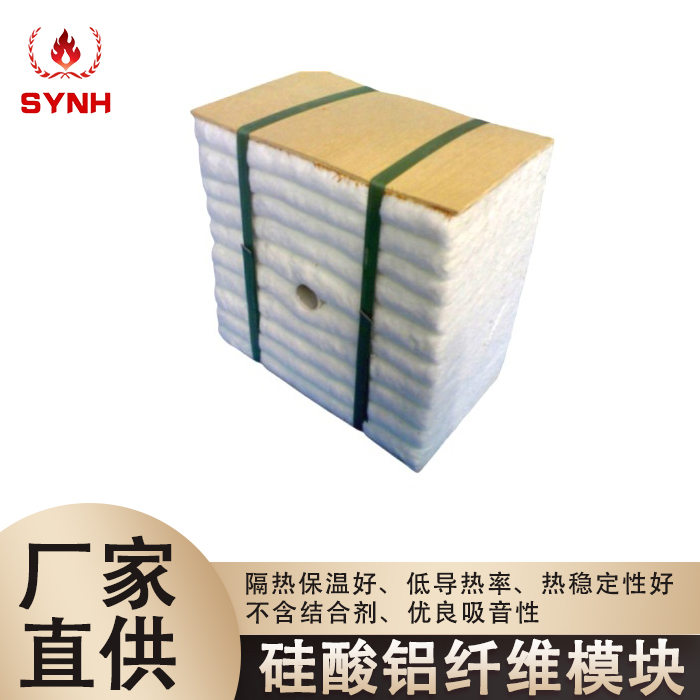

Aluminum silicate fiber module

Product Description：

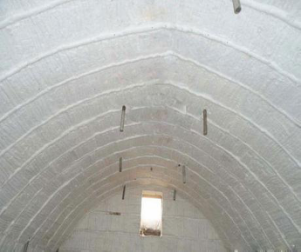

The ceramic fiber module is a new type of refractory lining product introduced to simplify and speed up the construction of the kiln and improve the integrity of the lining.The product is white in color and regular in size. It can be directly fixed to the anchor nails of the steel plate of the industrial kiln shell. It has a good fire-resistant and heat-insulating effect, which improves the integrity of the fire-resistant and heat-insulation of the kiln and promotes the progress of the kiln masonry technology. .

The ceramic fiber module is made of ceramic fiber needle-punched blanket of corresponding material, processed on a special machine according to the structure and size of the fiber component.During the processing, a certain proportion of compression is maintained to ensure that after the ceramic fiber module wall lining is completed, due to the expansion of each ceramic fiber module in the same direction, the ceramic fiber modules are squeezed into a seamless gap. As a whole, the ceramic fiber module can be directly fixed to the steel plate of the industrial kiln shell through various forms of anchors.

Product Features：

Excellent chemical stability; excellent thermal stability; excellent elasticity. The ceramic fiber module is in a preloaded state. After the furnace lining is built, the expansion of the ceramic fiber module makes the furnace lining seamless and can compensate for the shrinkage of the fiber lining to improve The thermal insulation performance of the fiber lining has good overall performance; excellent thermal stability and thermal shock resistance; the ceramic fiber module is installed quickly, and the anchors are arranged on the cold surface of the wall lining, which can reduce the requirements for the material of the anchors.

product instructions：

1. Derusting 2. Wiring

3. Welding bolts 4. Coating high temperature anti-corrosion layer

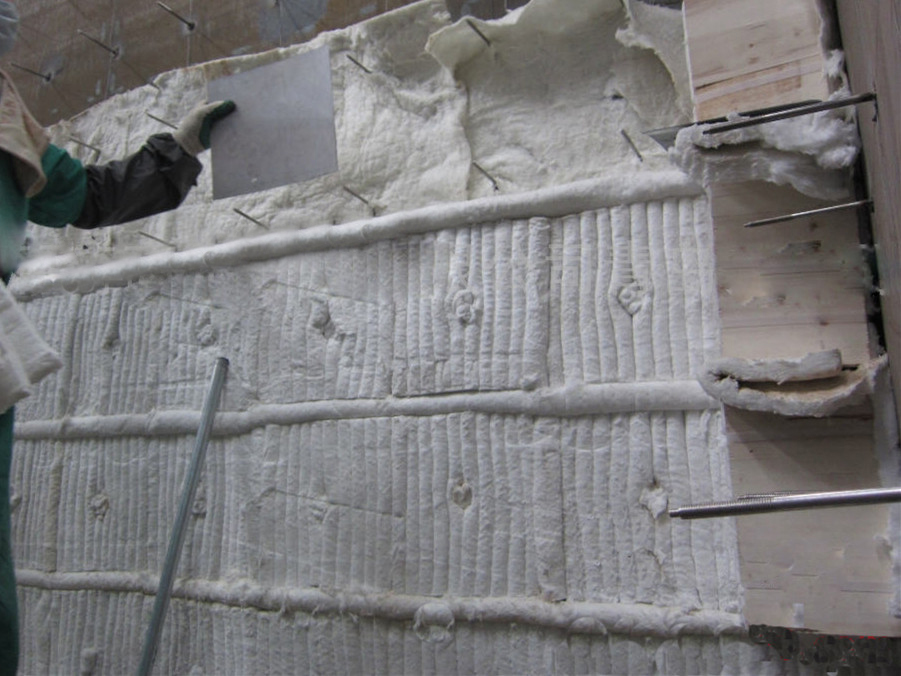

5. Installation of tiled blanket 6. Module installation

7. Installation of compensation blanket 8. Furnace lining trimming

9. Furnace lining surface spraying 10. Flattening treatment
