How to choose between black kiln and white kiln? A guide to building refractory materials for firewood-fired bread kilns

With the rise of rural cultural tourism, boutique bakeries, camping courtyards and other businesses, wood-fired bread kilns have become popular supporting facilities due to their advantages of natural heat storage and unique baking flavor. Bread kilns on the market are mainly divided into two categories: black kiln (direct fire type) and white kiln (intermediate fire type). The structure, performance, and applicable scenarios of the two are significantly different. As a manufacturer of refractory insulation materials, today we will completely dismantle the characteristics and applicable scenarios of the two kiln types, and also share the refractory material matching scheme in standardized masonry.

1. Comparison of the core features of black kilns and white kilns

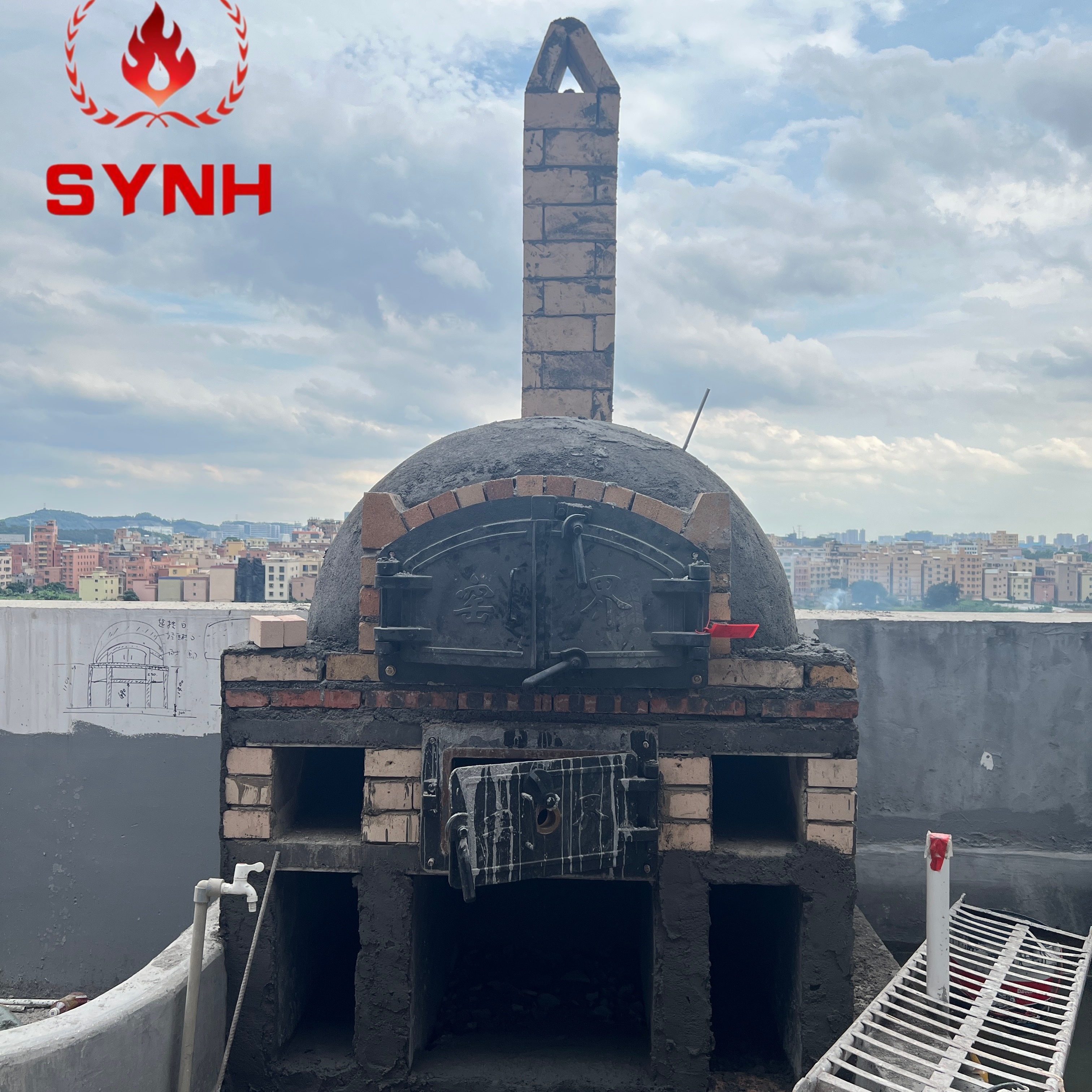

1. Black kiln (direct fire integrated bread kiln)

The black kiln combustion chamber and baking chamber are combined into one, and firewood is burned directly in the baking space. The heat storage speed is fast, and the temperature can be raised to a high temperature of 350-450°C in 1.5 hours. Advantages: simple structure, low masonry cost, open flame baking with fruit wood smoke aroma, baked pizza, kiln chicken skin crispy and rich color; kiln body has strong heat storage, single heating can bake multiple batches. Shortcomings: charcoal fire ashes can easily contaminate ingredients, temperature control is difficult, and novices can easily burn it; the charcoal fire needs to be cleared out before each baking, and the temperature will decline significantly during long-term continuous production.

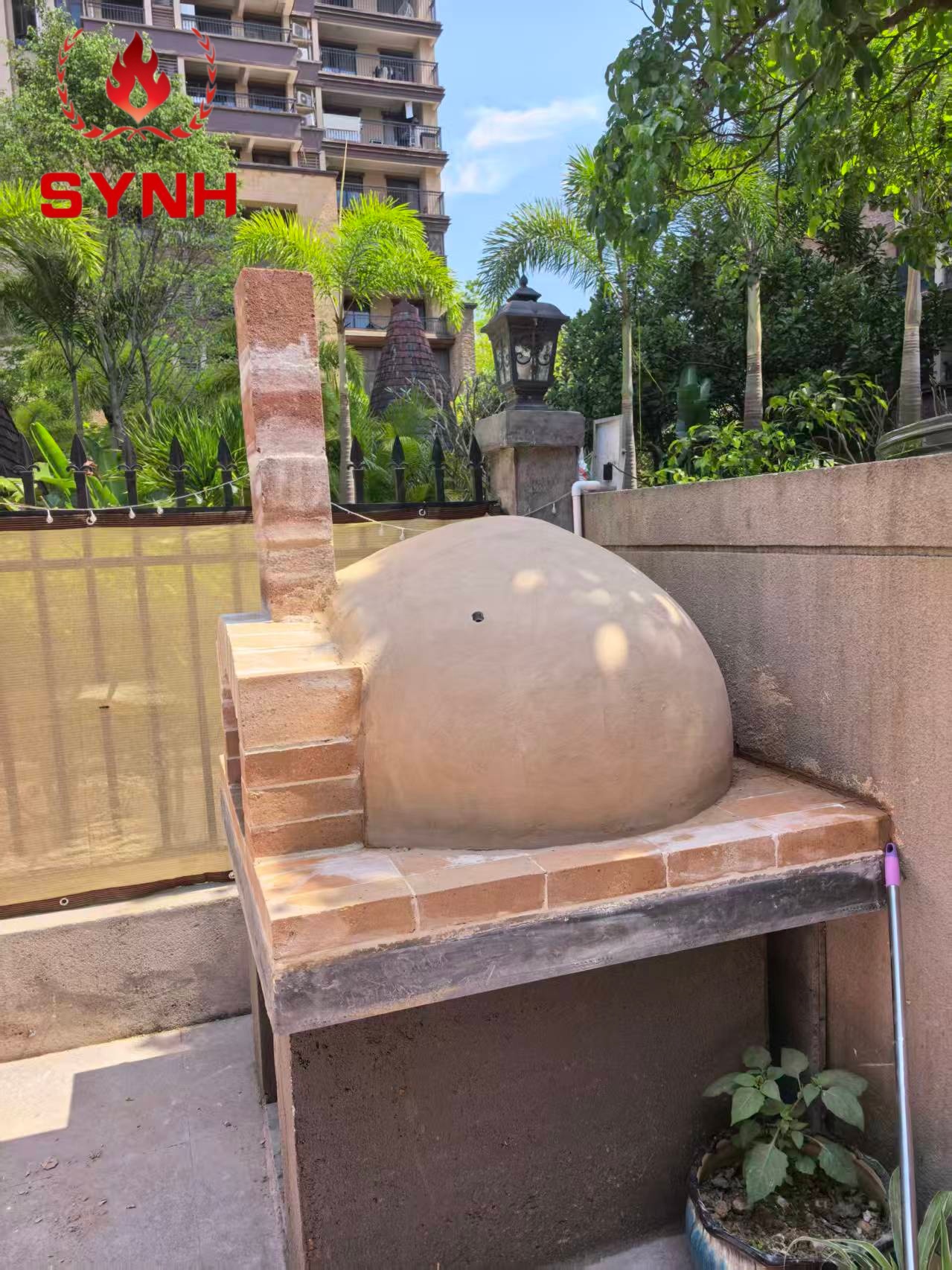

2. White kiln (split-fired bread kiln)

It adopts an upper and lower layered structure, with an independent combustion chamber on the lower floor and a baking area on the upper floor. The flame heats the kiln wall through the air duct and does not directly contact the food. Advantages: uniform and stable temperature, long-lasting heat preservation, no smoke impurities, fine internal structure of European bread and baguettes and pure wheat aroma; simple operation, stable mass production for a long time, low temperature on the outer wall of the kiln, safer for commercial use. Shortcomings: The masonry process is complex, the amount of refractory materials is larger, and the overall construction cost is higher than that of a black kiln.

2. Applicable scenarios for two types of bread kilns

Black kiln adaptation scene

1. Outdoor camping base, private baking in the courtyard, and small farmhouse experience area;

2. Specialty pizza shop and firewood kiln chicken simple meal shop, specializing in fireworks-flavored meals;

3. Rural study, parent-child handicraft experience, single small amount of baking, low-frequency use scenarios.

White kiln adaptation scene

1. Professional boutique bakeries and chain bakery stores, stable mass production of European bread;

2. Homestay cafes and cultural tourism experience centers provide frequent meals on a daily basis;

3. Western restaurants and private baking studios pursue clean, smoke-free, and uniform taste production standards.

3. Complete set of masonry refractory materials matching scheme for bread kiln

Bread kilns have frequent temperature difference cycles, so special refractory materials need to be layered in different areas to prevent cracking, slag and heat loss problems:

1. The furnace, hearth and dome fire-facing layer (core high-temperature area) are all made of standard high-alumina refractory bricks or clay refractory bricks . This brick has strong heat storage performance, can withstand repeated thermal shocks at 500°C, is wear-resistant and impact-resistant, and is the core base material for heat storage and baking in the kiln. This brick is used uniformly in the baking chamber walls of both the black kiln and the white kiln.

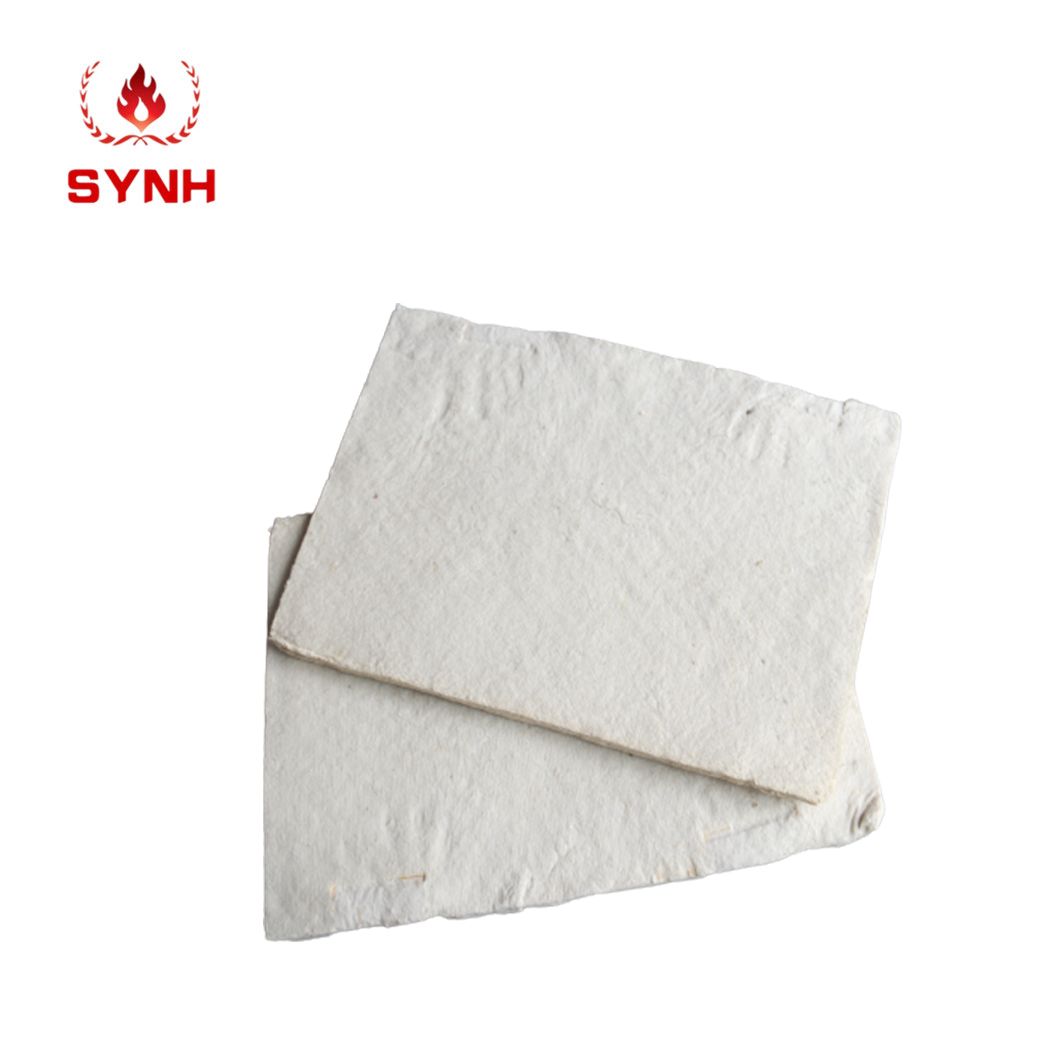

2. The outer thermal insulation layer is matched with lightweight insulating refractory bricks + aluminum silicate fiber blankets to wrap the outside of the kiln body, locking in internal heat, greatly reducing firewood consumption, and avoiding high-temperature burns on the outer wall. Commercial white kilns must have thickened insulation layers.

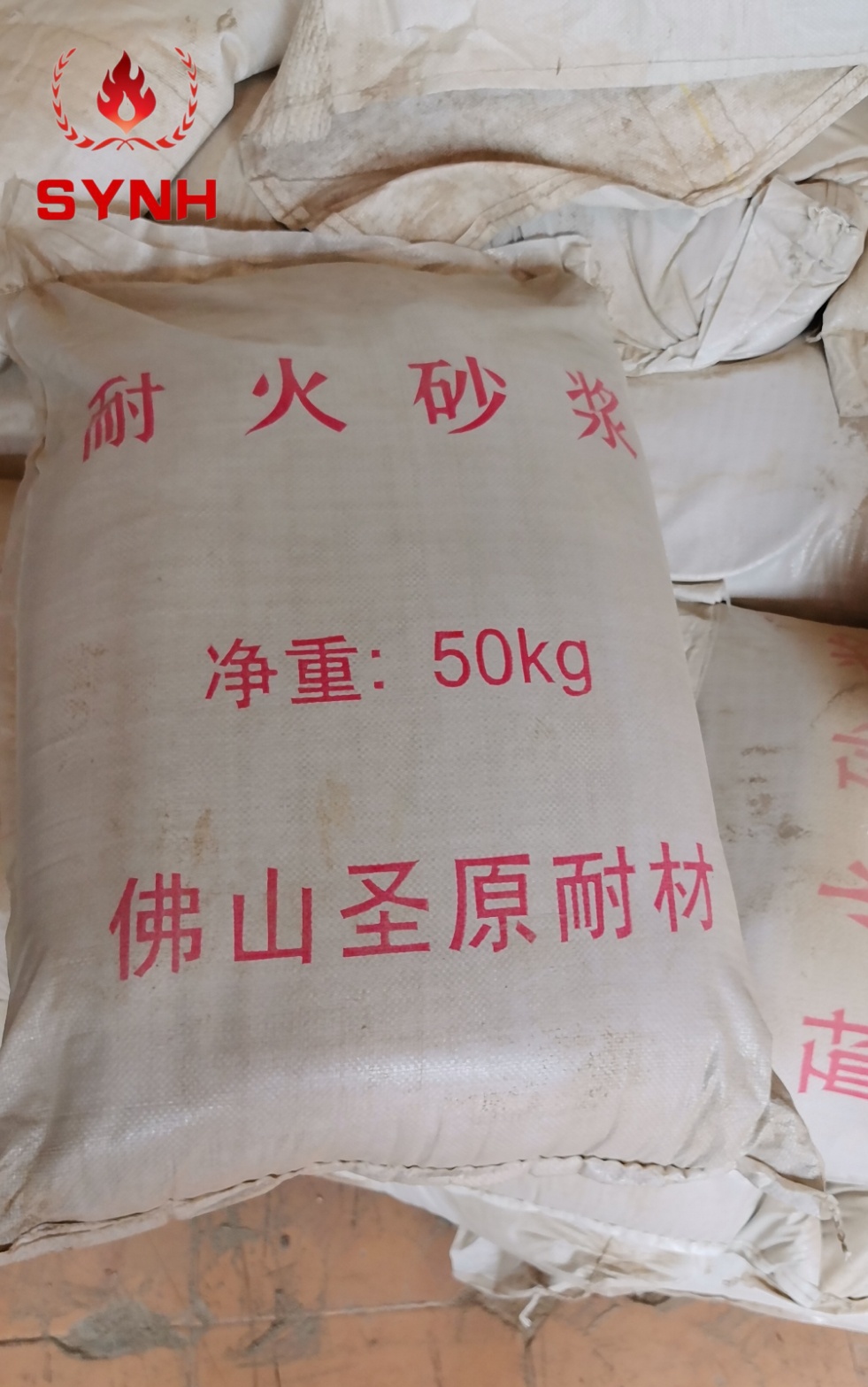

3. The main materials for masonry bonding are high-temperature refractory castables and refractory mortars . They are special high-temperature-resistant bonding materials. Ordinary cement masonry is prohibited. They will not crack or pulverize at high temperatures. They are used for brick joints, dome repairs, and flue pouring and molding.

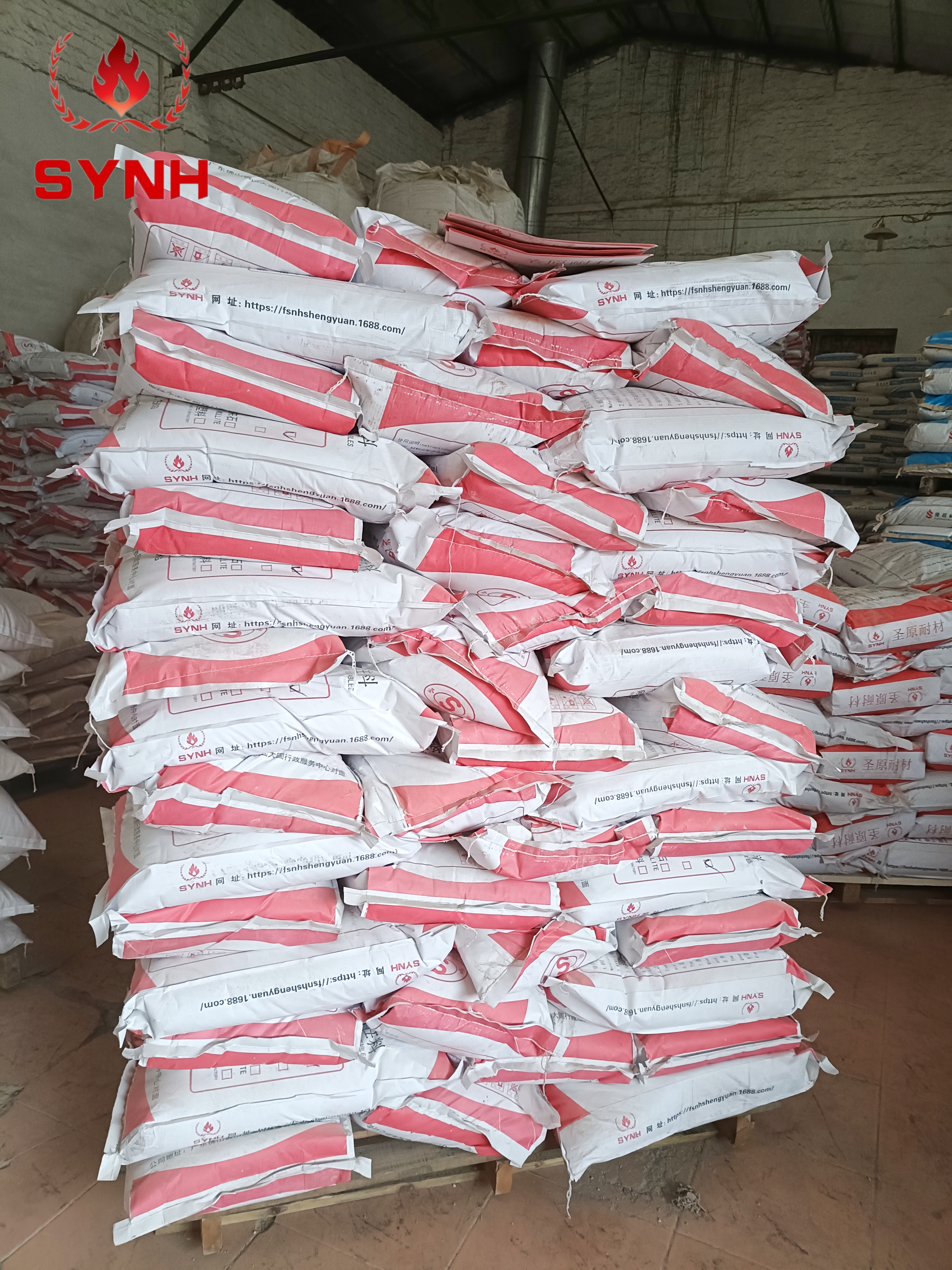

4. Use low-cement refractory castables for reinforcement parts such as flues and furnace doors . This material has strong integrity and is suitable for special-shaped structures. It is suitable for the reinforcement of furnace doors, chimneys, and vault corners, thereby extending the service life of the kiln.

The entire set of materials takes into account the three major requirements of heat storage, heat insulation, and high temperature resistance . Both small household kilns and large commercial bread kilns can be matched as needed. We can customize the material ratio according to the kiln size.

4. Ending

After reading the differences between black kilns and white kilns and the selection of refractory materials, I believe you can choose the right bakery kiln according to your business scenario. Shengyuan Refractory Insulation Materials Factory focuses on kiln refractory supporting equipment and can provide one-stop refractory material supply for bakery shop owners, cultural tourism projects, and self-built courtyard customers. Follow us and leave a message [Bread kiln drawings] in the background to get professional bread kiln masonry construction guide and material list reference!
