The two major pain points of aluminum silicate loose cotton have troubled countless high-temperature insulation users.

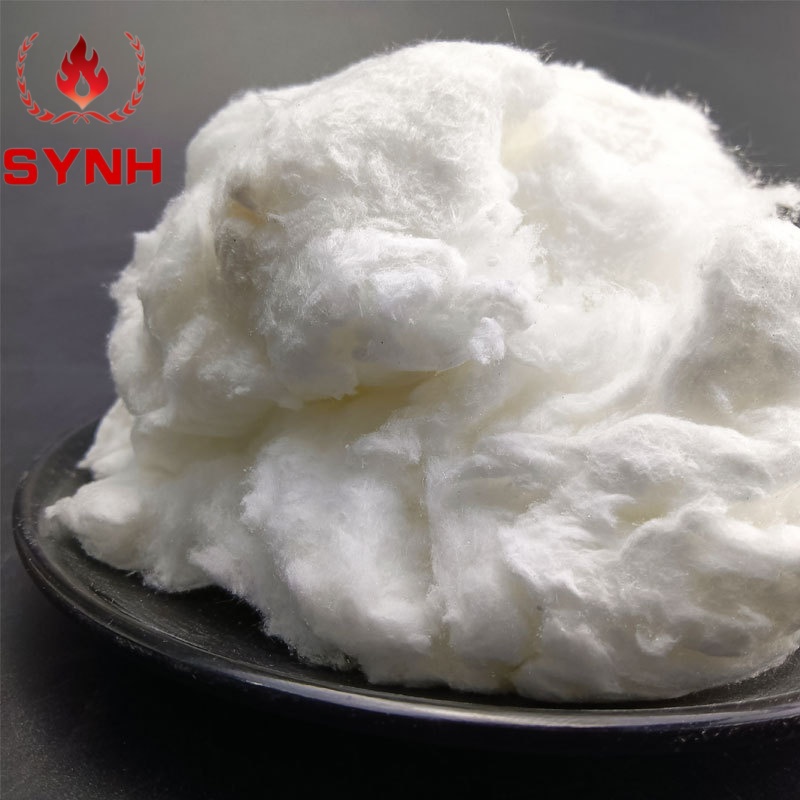

Aluminum silicate loose wool is a commonly used thermal insulation material in industrial kilns, thermal pipelines, and high-temperature equipment. It is light and strong, resistant to high temperatures, has slow heat dissipation, and has stable chemical properties. It is often used in petroleum, electric power, metallurgy, ceramic building materials and other industries.

In actual construction and use, many manufacturers will encounter two common problems: the material cannot withstand high temperatures and is prone to slag.

If the heat resistance is poor, the material will shrink, crack, pulverize and break under long-term high temperature environment, and the thermal insulation effect will directly fail. When the surface temperature of the equipment is high, heat is wasted and production costs also increase.

Slag not only pollutes the work site, but can also easily block equipment and affect the quality of finished products. In serious cases, it can also bring safety risks.

Industry data shows that more than 30% of high-temperature insulation-related failures are caused by wrong selection of cotton materials, substandard quality or inadequate construction. So what is the reason for poor heat resistance and excessive slag shedding? How can we reliably solve these two common problems?

1. Cause analysis: 3 core reasons leading to insufficient temperature resistance and serious slag shedding

After tracking and surveying customers in multiple industries and in-depth analysis of the production process, we believe that the problems of insufficient temperature resistance and serious slag shedding of aluminum silicate loose cotton are mainly due to the following three core reasons:

1. The impurity content is too high, resulting in a significant reduction in operating temperature

The fire-resistant performance of aluminum silicate loose wool mainly depends on the content of Al₂O₃ and SiO₂ in its chemical composition, as well as the content of impurities such as Fe₂O₃ and Na₂O. The higher the impurity content, the less refractory the material is.

The national standard GB/T 3003-2017 stipulates that the Al₂O₃ content of ordinary aluminum silicate loose cotton should be ≥45%, and the Fe₂O₃ content should be ≤1.0%. However, in order to reduce costs, some low-price products use low-grade raw materials, and the Fe₂O₃ content even exceeds 2.0%, resulting in the actual operating temperature being 100-150°C lower than the nominal value. Users use it according to the nominal temperature, and the result is naturally "insufficient temperature resistance".

2. The content of slag balls is too high, resulting in serious slag shedding and reduced thermal insulation performance.

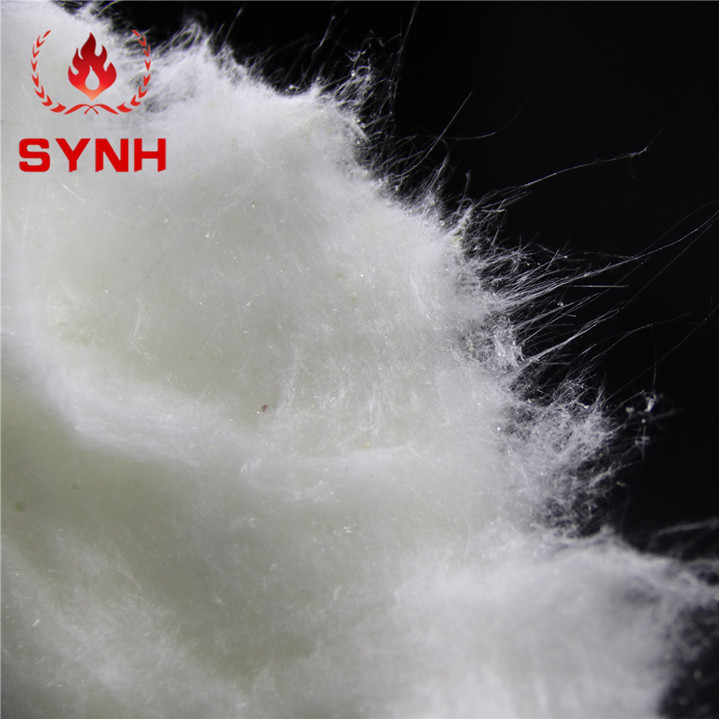

Slag balls refer to the unfibered granular material in aluminum silicate loose cotton. The higher the content of slag balls, the worse the flexibility of the product. Under high-temperature airflow erosion or vibration environment, slag balls will fall off from the fiber, forming a "slag falling" phenomenon.

According to industry standards, the slag ball content (particle size > 0.25mm) of ordinary grade aluminum silicate loose cotton should be ≤15%, and high-purity products can be controlled below 5%. The slag ball content of inferior products even exceeds 25%, so the problem of slag falling is naturally unavoidable. Slag balls not only affect the use environment, but also reduce the overall density of the insulation layer, causing heat loss to increase by 15%-20%.

3. The production process is backward, the fiber diameter is uneven, and the strength is insufficient.

The production processes of aluminum silicate loose wool mainly include resistance furnace melting method and electric arc furnace melting method. Advanced technology can control fiber diameter within the range of 2-4μm, with uniform fiber length and high tensile strength. The fibers produced by backward processes have a wide diameter distribution (1-8 μm), a high proportion of short fibers and thick fibers, poor overall strength, and are prone to breakage and powdering at high temperatures, accelerating slag shedding and temperature resistance attenuation.

2. Solution: 3 solutions to the problem of aluminum silicate loose cotton temperature resistance + slag shedding

For the above three core reasons, we have summarized three effective solutions. Users can choose the appropriate solution based on their own operating temperature, working conditions and budget.

Option 1: Reasonable selection and choose the corresponding brand according to the actual use temperature (ordinary type/high purity type/high aluminum type/zirconium-containing type) <1000℃ low and medium

Option 2: Replace with high-quality products and choose high-quality aluminum silicate loose cotton with low impurities and low slag ball content, 1000-1300°C, medium good

Option 3: Composite structure design adopts multi-layer composite insulation structure, using different materials in different temperature ranges >1300℃ is higher

Option 1: Reasonable selection to avoid "overkill" or "overkill"

Many users do not understand the grade and applicable temperature of aluminum silicate loose cotton. They either choose cheap low-end products for use in high-temperature working conditions, or use high-end products for all parts, causing waste.

The correct approach is: select the corresponding product brand based on the actual use temperature:

Ordinary type (Al₂O₃ 45%-48%): long-term use temperature ≤900℃

High purity type (Al₂O₃ 48%-52%): long-term use temperature ≤1050℃

High aluminum type (Al₂O₃ 52%-55%): long-term use temperature ≤1200℃

Zirconium-containing type (Al₂O₃ 35%-40%, ZrO₂ 15%-17%): long-term use temperature ≤1350℃

If you choose the right model, 80% of the temperature resistance problems can be solved.

Option 2: Switch to higher quality products and solve the problem from the source

If the selection is correct but there is still insufficient temperature resistance and serious slag shedding, it means there is a problem with the quality of the product. It is recommended to choose high-quality aluminum silicate loose cotton that meets the following indicators:

Chemical purity: Fe₂O₃ ≤ 0.5%, Na₂O+K₂O ≤ 0.5%

Slag ball content: particle size >0.25mm ≤ 8%, particle size >0.15mm ≤ 15%

Fiber diameter: 2-4μm, uniform

Classification temperature: safety margin 100-150℃ higher than the actual use temperature

Although the unit price of high-quality products is slightly higher, the service life is extended by 1-2 times, and the overall cost is actually lower.

Option 3: Composite structural design (an advanced option that 90% of people don’t know)

For extreme working conditions where the operating temperature exceeds 1300°C, a single aluminum silicate loose wool can no longer meet the requirements. At this time, composite insulation structure design can be used:

Hot surface layer: Use zirconium-containing aluminum silicate loose cotton or higher grade polycrystalline mullite fiber wool (temperature resistance 1400-1600°C)

Back temperature layer: Use high-purity or high-aluminum aluminum silicate loose cotton (temperature resistance 1000-1200℃)

Outer layer: Use ordinary aluminum silicate loose wool or rock wool (temperature resistance <800°C)

This composite structure takes advantage of the temperature gradient of different materials to not only ensure the temperature resistance of the hot surface, but also reduce the overall cost. More importantly, the multi-layer structure can effectively inhibit fiber shedding and greatly improve the problem of slag shedding.

3. Shengyuan Refractory’s experience and data in the application of aluminum silicate loose cotton

We have been deeply involved in the refractory insulation industry for many years and have accumulated a lot of practical experience in the use of aluminum silicate loose cotton. Here are some practical insights to share.

Strictly control supply screening

Each batch of goods will be randomly inspected one by one, focusing on checking the proportion of alumina, iron oxide, slag balls and fiber thickness. Only if all four parameters are qualified will it be put into use.

Whole-process quality traceability

All shipped products are marked with exclusive batch numbers, and the source of raw materials, production time, and testing records can be queried one by one. If customers have any questions, we will respond quickly 24 hours a day.

4. Conclusion

The root causes of the insufficient temperature resistance and slag shedding problems of aluminum silicate loose cotton are high impurity content, high slag ball content, and backward production technology. These problems can be completely solved through reasonable selection, replacement of high-quality products or adoption of composite structure design.
